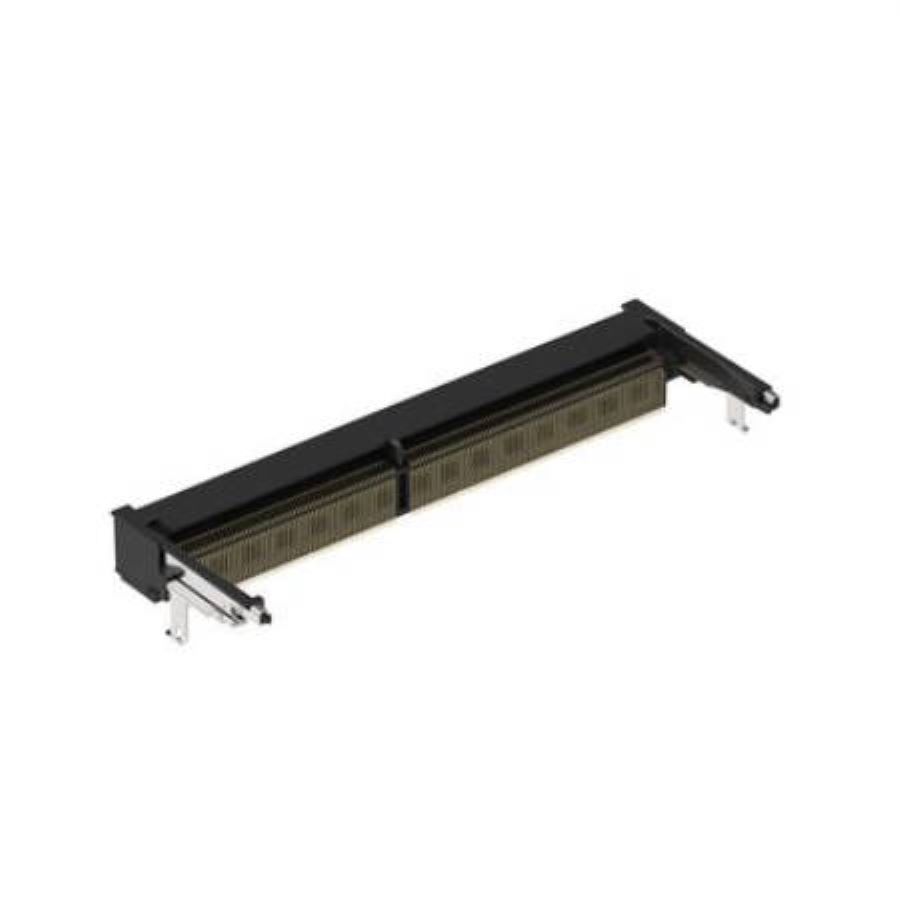

2309413-1
Manufacturer:
TE Connectivity
Mfr.Part #:
2309413-1
Datasheet:
Description:
Memory Connectors SMD/SMT Number of Positions:260
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 18.8 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Memory Type | DDR, SDRAM |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Number of Contacts | 260 |
| Number of Positions | 260 |
| Number of Rows | 2 |
| Row Spacing | 8.1788 mm |
| Housing Material | Thermoplastic |
| Circuit Application | Power |
| Contact Current Rating | 500 mA |
| Housing Color | Black |
| Stack Height | 9.1948 mm |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
Stock: 196
Distributors
pcbx
pcbxUnit Price$1.82736
Ext.Price$1.82736
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.82736 | $1.82736 |
| 10 | $1.57930 | $15.79300 |
| 25 | $1.48372 | $37.09300 |
| 50 | $1.39392 | $69.69600 |
| 100 | $1.30956 | $130.95600 |
| 300 | $1.23030 | $369.09000 |
| 500 | $1.15585 | $577.92500 |
| 1000 | $1.12433 | $1124.33000 |
